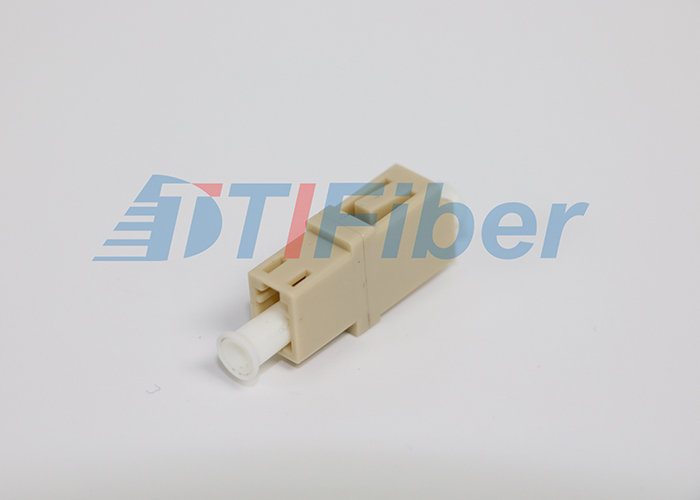

High Stability LC Fiber Optic Adapter For Lan / Wan , Good Temperature Performance

Brand Name : TTI

Model Number : ALC-SX

Certification : ROHS, SGS, ISO9001

Place of Origin : Guangdong, China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, , PayPal

Supply Ability : 10000 pieces per day

Delivery Time : 3-5days

Packaging Details : 25pcs/Case

Operating Temperature Range : -40°C ~ +80°C

Type : Simplex

Sleeve : Zirconia, Bronze

Housing : Plastic, Metal

Structure : With Flange, Without Flange

Color : Blue, Green or customized

Contact Now

High Stability LC Fiber Optic Adapter For Lan / Wan , Good Temperature Performance

Description:

Fiber optic adapters (also known as bulkheads) are used to join two fiber optic patch cables together. They are available for use with either singlemode or multimode patch cables.GST provides an extensive line of fiber optic adapters that offer superior low loss performance with high repeatability.

Feature:

Low Insertion Loss and High Return Loss
High Reliability and Stability
Accurate dimensions
Good Durability and Interchangeabilty
Good Durabilty and Temperature Performance

Application:

FTTX, FTTH
LAN, WAN
Optical Fiber Communication Systems
Telecommunication Networks

Specification:

Specification
Type	SC/FC/ST/LC/MU/MTRJ/MPO
Mode	SM,MM
Insertion Loss	SM≤0.2dB, MM≤0.3dB
Repeatability(dB)	≤0.1dB
Mechanism Durability(500 cycles, dB	≤0.2dB
Material of sleeve	>50N
Working Temperature	Zirconia or Bronze

Reliability testing:

Reliability testing
Item	Test Name	Additional Insertion Loss	Additional Return Loss
1	Mechanical durability	<0.2dB	<5dB
2	Repeatability	<0.2dB	<5dB
3	Lock strength	<0.2dB	<5dB
4	Low strength	<0.2dB	<5dB
5	High temperature	<0.2dB	<5dB
6	Steaming	<0.2dB	<5dB
7	Temperature cycle	<0.2dB	<5dB
8	Vibration	<0.2dB	<5dB
9	Drop	<0.2dB	<5dB

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
