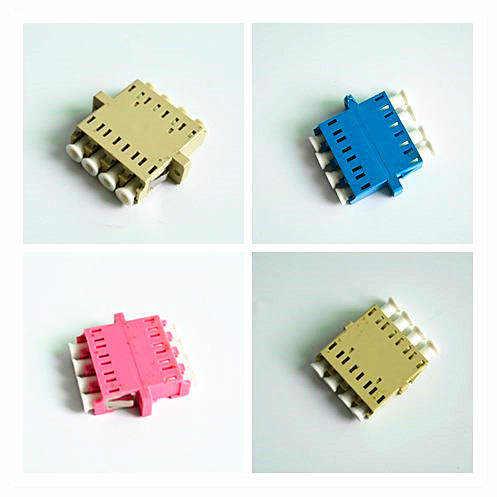

Standard Fiber Optic Adapter ODM/OEM Customized LC/SC/ST/FC Connectors Compact Design

Brand Name : TTI

Model Number : LC

Certification : RoHS/ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : , , T/T, L/C

Supply Ability : 5000 per/ week

Packaging Details : 25pcs in 1 plastic box,50 boxes in 1 carton.

Color : Pink,Aqua,Blue,Customized

Application : LAN,WAN,TEST

Optical Connector : APC/PC/UPC

Working temperature : -40℃ ~ +80℃

Sleeve : Zirconia/Ceramic, Copper

Contact Now

Standard Fiber Optic Adapter ODM/OEM Customized LC/SC/ST/FC Connectors

Product Description:

Fiber Optic Adapter, Simplex, for ODF and pigtail with LC fiber optic connector, accept small order, without MOQ, good payment terms fiber optic adapter China factory supplier.

Features :

Insertion loss: Less than 0.2dB

Return loss: 45dB/PC, 55dB/UPC, 65dB/APC

Retentivity:200-600g

Repeatability (1,000 times): Less than 0.2dB

High precision alignment

Compact design

Various housing materials and sleeve materials

Nickel plated brass body

Telcordia, ANSI, TIA/EIA, NTT and JIS compliance

Applications :

Telecommunication networks

Test equipment

Local area networks (LANs)

Data processing networks

CATV

Patch panel, optical fiber distribution frame

Specification:

Item	SM(UPC)	SM(APC)	MM(PC)
Insertion loss(dB)	≤0.3	≤0.3	≤0.3
Repetitiveness(dB)	≤0.1	≤0.1	≤0.1
Interchangeability(dB)	≤ 0.2
Plug time(times)	500-1000
Operating Temperature(°C)	-25~85
Humidity	95%
Sleeve Material	Zirconia	Zirconia	Phosphor

			Bronze
