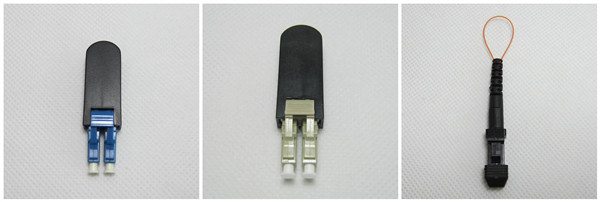

Singlemode MPO optical loopback with Precision Ceramic Ferrule

Place of Origin : Guangdong, China

Brand Name : TTI

Certification : ROHS, SGS

MOQ : Negotiable

Packaging Details : 1PCS/PE Bag

Delivery Time : 2-3 days

Payment Terms : T/T, , Monthly settlement

Supply Ability : 7000pcs/Day

Price : Negotiable

Contact Now

Singlemode MPO optical loopback with Precision Ceramic Ferrule

Description:

fiber optic loopbacks can be with various jacket types and cable diameters, and they can be with different terminations and length.

Quick Detail:

  1. Mode: Singlemode: 9/125um
  2. Cable diameter: 0.9mm, 2.0mm, 3.0mm
  3. Cable jacket: PVC, LSZH, OFNP, OFNR
  4. Cable color: Yellow, Orange, Aqua, White, Red, Green
  5. Insertion loss: ≤0.2dB for SM, ≤0.3dB for MM and SM/APC
  6. Return loss: ≥ 45 dB for PC, ≥ 50 dB for UPC, ≥ 65 dB for APC and ≥35dB for MM

Features:

  1. Compact design
  2. Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit Ethernet
  3. Short wavelength devices
  4. Molded connector to secure connection

Applications:

  1. Equipment interconnection
  2. Device pig-tailling
  3. Premise networks
  4. Patch panel applications
  5. Communications connections
  6. LoopBack for network components testing

Specification:

Optical Performance Single Mode Multi Mode
Insertion Loss ≤0.20dB ≤0.30dB
Return Loss ≥45dB(PC) ≥35dB
≥50dB(UPC)
≥60dB(APC)
Repeatability ≤0.10dB
Durability ≤0.2dB typical change,1000 matings
Operating Temperature - 20 ~ +75°C
Storage Temperature - 40 ~ +85°C

Ordering Information:

Step 1: Connector Type: SC, LC, MTRJ, MPO

Step 2: Connector size: 0.9mm, 2.0mm, 3.0mm

Step 3: Ferrule End-face: UPC, APC

Step 4: Core Type: Single-mode (SM:9/125um), Multimode (MM:50/125um,62.5/125um)

Step 5: Boot color: Black, Blue, White, Red, Yellow, Green, Beige, Aqua

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Our service:

  1. Standard and customized OEM products from small to large quantity are welcome.
  2. Compliance with global environmental industry with ROHS and SGS standards.
  3. All products are 100% fully tested by our technical expertise before shipping.
  4. We provide fiber optic loopbacks according to industry standard.
