1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange

Name: 12525mm SMMM Ceramic Ferrule for LCSC Fiber Connector Fiber Optic Equipment With Flange
Brand: TTIFIBER
Price: 1 USD

China 1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange wholesale

Brand Name : TTIFIBER

Model Number : fiber ferrule

Certification : CE/ROHS/ISO9001

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 20000pcs/day

Delivery Time : 60 working days

Packaging Details : PE bag

Product name : fiber ferrule

OD : 1.25 / 2.5mm

Material : ceramic

Connector type : SC / LC /ST /FC

Core type : singlemode / multimode

Package : PE bag

Contact Now

1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange

Specification:

Outer diameter: (1.2499±0.0005)mm
Inner diameter: (0.125+0.001/-0)mm
Concentricity: 1.0μm
Insertion loss:≤0.2dB
return loss:≥60dB
length:(6.50±0.05)mm

Brief Introduction:
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.

Materail:
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu

Features:

Good compatibility
Accurate mechanical dimensions
Good reliability and stability
Compliant with RoHS, Bellcore, IEC

Application:

Telecommunication
CATV
LAN (including FTTx)
Data network

Specification

Parameter	Single Mode	Multi Mode
Outside Diameter	Ø2.4990
OD Tolerance	±0.0005	±0.001
Inner Diameter	Ø0.125
ID Tolerance	+0.001/0	+0.004/0
Ferrule Length	10.5±0.05	10.5+0.05/-0.1
Concentricity	≤0.001	≤0.004
End Curve Radius	15+10/-5

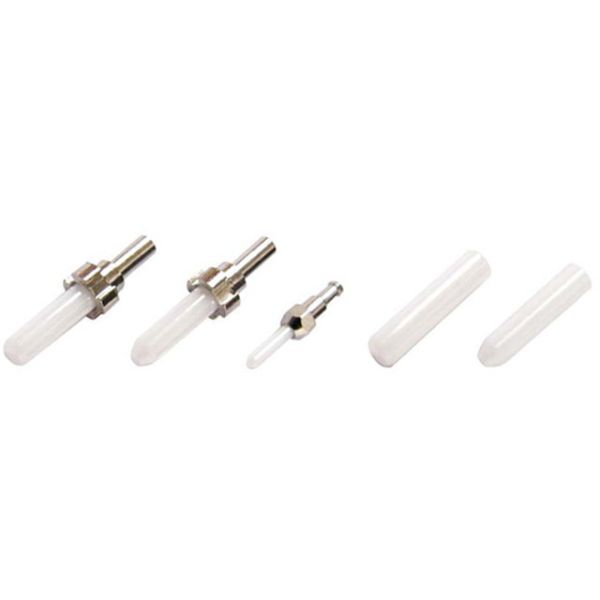

Product pictures

1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange

1.25/2.5mm SM/MM Ceramic Ferrule for LC/SC Fiber Connector Fiber Optic Equipment With Flange
